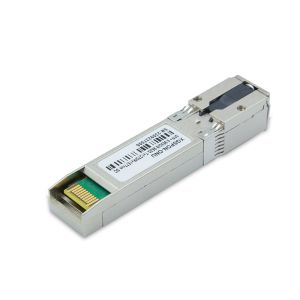

China XGSPON-ONU SFP+ PON Transceiver 1270nm TX 1577nm RX 9.953G 9.953G 20km DDM SC SMF Cisco Compatible wholesale

XGSPON-ONU SFP+ PON Transceiver 1270nm TX 1577nm RX 9.953G 9.953G 20km DDM SC SMF Cisco Compatible

Ask Latest Price

Video Channel

Certification :CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin :China

MOQ :1 pcs

Price :negotiable

Payment Terms :T/T, Western Union, MoneyGram

Supply Ability :50,000pcs/month

Delivery Time :1-5 work days

Packaging Details :Single Package,10pcs per Tray,100-500pcs per Carton

Form Factor :SFP+

Max Data Rate :9.953G/9.953G

Wavelength :1270nm TX / 1577nm RX

Distance :20km

Connector :SC

Media :SMF

Transmitter Type :DFB

Receiver Type :APD-TIA

TX Power :5~9dBm

Receiver Sensitivity :< -29dBm

Receiver Overload :-8dBm

Extinction Ratio :>6.5dB

Temperature :C-Temp & I-Temp

Protocols :(MSA) SFF-8074i,IEEE 802.3ah,SFF-8472

Warranty :3 Years

Compatible Brand :Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Add to Cart

View Product Description

Cisco Compatible XGSPON-ONU SFP+ 1270nm TX/1577nm RX 9.953G/9.953G 20km DDM SC SMF Transceiver Module

Features

Single Fiber XGS-PON ONU Transceiver
1270nm burst-mode 9.953 Gb/s transmitter with DFB laser 1577nm continuous-mode 9.953Gb/s APD/TIA receiver
Digital diagnostic monitoring (DDM)with internal calibration
SFP+ package with SC UPC receptacle connector
+3.3V separated power supply, low power dissipation
LVPECL interface logic level for data input
CML interface logic level for data output
LVTTL for burst signal input
LVTTL for receiver loss of signal detect indication
Compliant with ITU-T G.9807
SFF-8472 compliant
Telcordia GR-468-CORE and MIL-STD-883 compliant
RoHS-6/6 compliant
Operating temperature range: 0℃ ~ +70℃
IEC 60825-1 compliant
FCC Part 15 Class B /EN55022 Class B (CISPR 22B)/ VCCI Class B compliant

Applications

10G/10G XGS-PON ONU

Description

The XGS-PON ONU transceiver is designed for single mode fiber and operates at wavelength of 1270nm. The transceiver module uses a DFB laser diode and fully compliant with IEC60825 and CDRH class 1 eye safety. It contains APC functions, a temperature compensation circuit to ensure compliance with ITU-T G.9807 requirements at operating temperature.

The receiver section uses a hermetic packaged APD-TIA (APD with trans-impedance amplifier) and a limiting amplifier. The APD converts optical power into electrical current and the current is transformed to voltage by the trans-impedance amplifier. The differential DATA and /DATA CML data signals are produced by the limiting amplifier. The APD-TIA is AC coupled to the limiting amplifier through a low pass filter.
