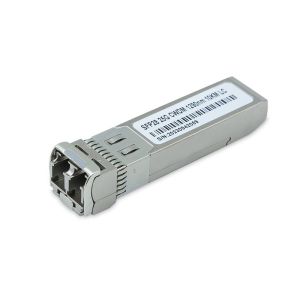

China Cisco Compatible 25Gbps 10km SFP28 CWDM 1290nm Duplex LC SMF Transceiver For Transmission wholesale

Cisco Compatible 25Gbps 10km SFP28 CWDM 1290nm Duplex LC SMF Transceiver For Transmission

Ask Latest Price

Video Channel

Model Number :ZK-SFP28-25G29CW-10

Certification :CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin :China

MOQ :1pcs

Price :negotiable

Payment Terms :T/T, Western Union, MoneyGram

Supply Ability :50,000pcs/month

Delivery Time :1-5 working days

Packaging Details :Single Package，10pcs per Tray，100-500pcs per Carton

Form Factor :SFP+

Max Data Rate :25.78Gbps

Wavelength :1290nm

Distance :10km

Connector :Duplex LC

Media :SMF

Transmitter Type :DFB

Receiver Type :PIN

TX Power :-2~8dBm

Receiver Sensitivity :< -11.3dBm

Receiver Overload :2.2dBm

Extinction Ratio :>3.5dB

Power Consumption :≤1.5W

Protocols :MSA, CPRI, eCPRI

Temperature :C-Temp & I-Temp

Warranty :3 Years

Compatible Brand :Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Add to Cart

View Product Description

Features

Supports 25.78Gbps data rate
DFB laser and PIN photo-detector
Duplex LC receptacle optical interface compliant
Single +3.3V power supply
Power dissipation < 1.5W
Hot-pluggable SFP28 form factor
Maximum link length of 10km
Operating temperature range:
Commercial: -5℃~+70℃
RoHS Compliant
Digital diagnostics functions are available via the I2C interface

Application

25GBASE-LR Ethernet
CPRI Option 10

Description

The SFP28 25G CWDM 1290nm 10KM LC is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 10km. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates Zkosemi proven circuit and technology to provide reliable long life, high performance, and consistent service.
